Description

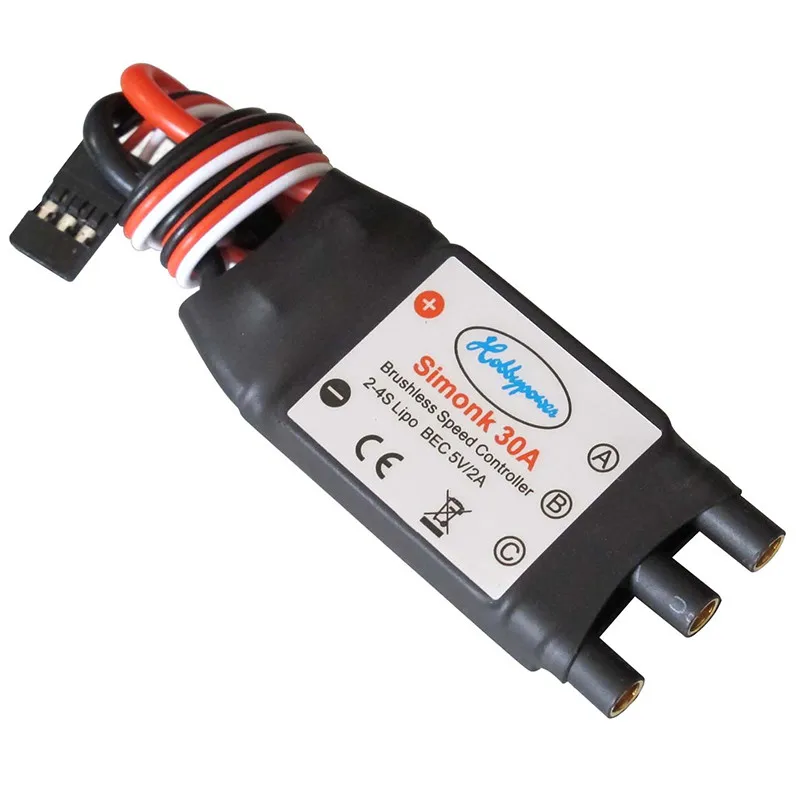

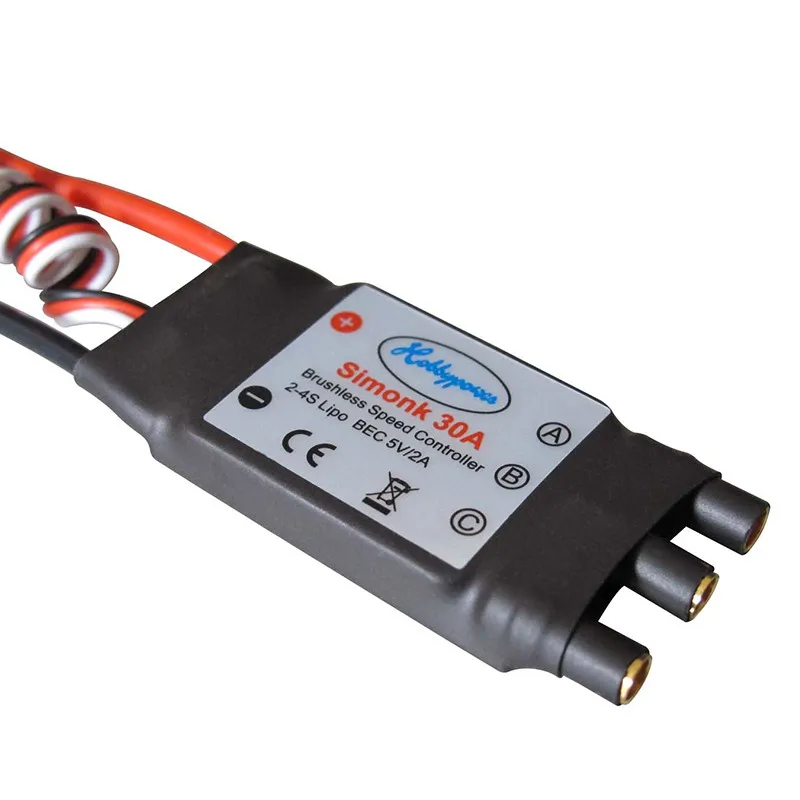

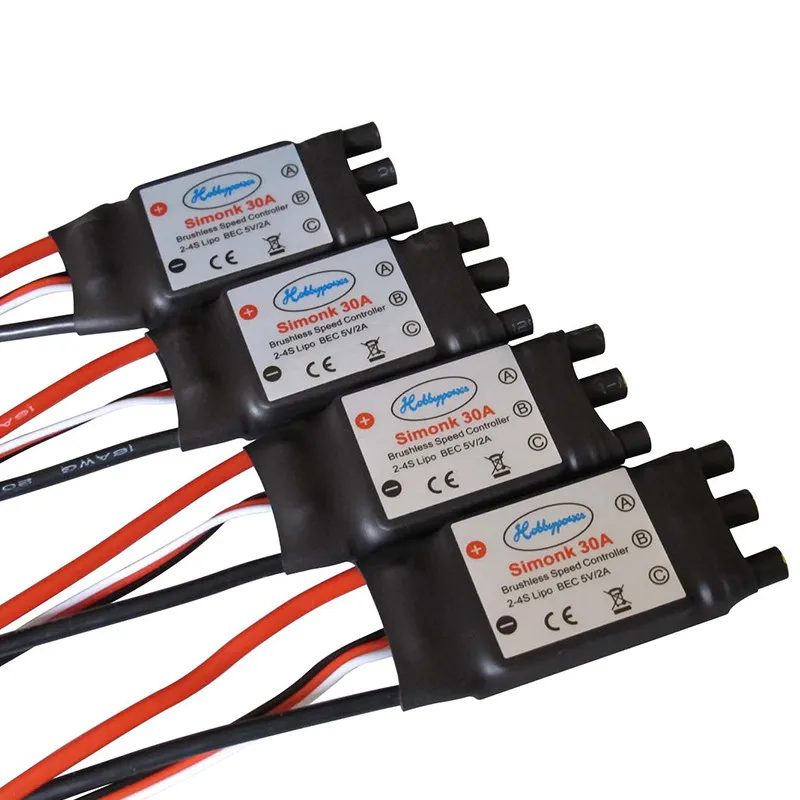

SimonK 30A ESC Brushless Speed Controller BEC 5V 2A for Quadcopter F450 X525 S500
100% brand new
For sale is 30A SimonK firmware Brushless ESC.
Soldered with 3pcs 3.5mm gold female plug, very convenient to connect motor.
Highest efficiency 100% N-FET design.
No low voltage cutoff, because any cutoff in a multirotor = crash.
No over temp cutoff, because any cutoff in a multirotor = crash.
Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).
Super simple, foolproof operation! Nothing to program other than the throttle range.
ESC Specs:
Cont. current: 30A
Max. current: 35A
Input Voltage: 2-4S lipo / 4-12 cell Ni-MH/Ni-Cd
BEC: 5V 2A (Linear mode)
Size: 55x26x8mm (length 145mm including power cable)
Weight: ~22g
